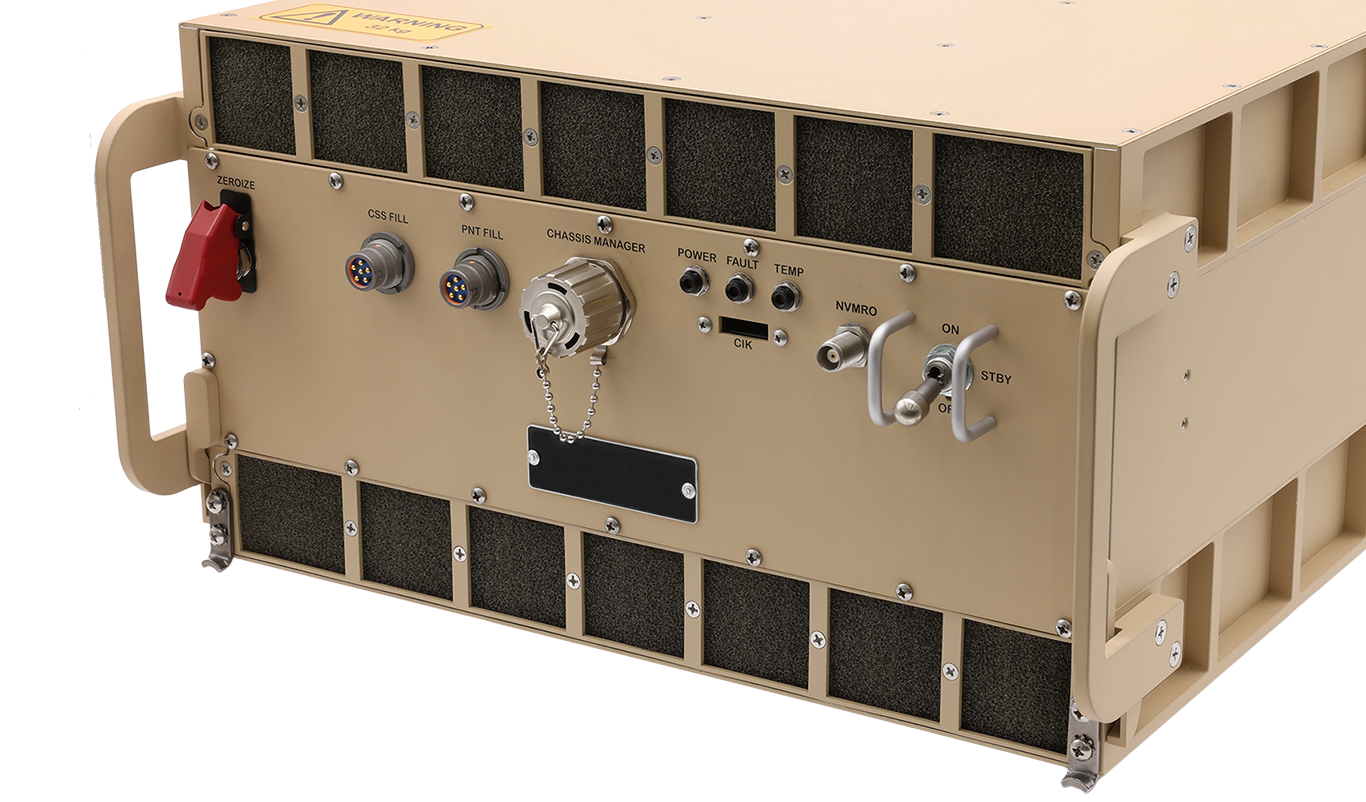

SX-922
13-Slot Front Loading Chassis
The SX-922 family of front-loading chassis is engineered for high-performance multi-function processing, fully aligned with U.S. Army CMOSS, The Open Group SOSA™, and 3U OpenVPX™ technical standards. These ruggedized chassis meet MIL-STD-810G and MIL-STD-461C standards, making them ideal for next-generation Cyber, EW, SIGINT, and Comms applications across air, land, and sea platforms.
Featuring a backplane with 100 Gbps interfaces, the 13-slot configuration supports dual-enclave operations for enhanced security certification. The SX-922 is compliant with ANSI VITA 48.2 standards for VPX REDI conduction cooling and meets ECC3 environmental requirements per VITA 47 standards, ensuring reliable performance in challenging conditions.
Key Features
Front Panel
RF signal inputs/outputs
Modular Open Radio Frequency Architecture (MORA) Vehicular Integration for C5ISR/EW Interoperability (VICTORY) Data Bus
PNT clock and timing
Built-in cryptographic key fill, ignition key fill, and zeroize switch
Card Access
Front loading plug-in cards access
PIC Configuration
Accommodates 3U VPX plug-in cards
8 mission specific payload cards
2 Ethernet switch card
1 timing/PNT card
2 power supply card
Mounting
Standalone or rackmount configuration
Accessories
Breakout cables provided with each chassis
Optional sliding rails available
Specifications
Backplane Interface
Fat pipes (FP) support up to 100 Gb/s for high data throughput and response time
Ultra-thin pipes (UTP) support up to 25 Gb/s
Dimension (approximate)
14”(L) x 16”(W) x 9”(H)
Weight (approximate)
50 lbs
Power
28V DC chassis input voltage
1300W (max) power consumption
PIC Form Factor
3U OpenVPX
Slot Profile
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4
SLT3-SWH-6F1U7U-14.4.14
SLT3-SWH-5F4UG7U-14.4.14
SLT3x-TIM-2S1U22S1U2U1H-14.9.2-1
VITA 62
Customizable to other aperture options
Environmental
Hybrid cooling ruggedized to meet MIL-STD-810G
Highly efficient thermal design for conduction cooled PICs
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
MORA
VICTORY
US Military Standard
MIL-STD-810G
MIL-STD-461C
Complementary Product
SX-432 Ultra-wideband SDR Transceiver
Up to 18 GHz tunable RF front-end
1 GHz of instantaneous bandwidth
Powered by Xilinx RFSoC technology
