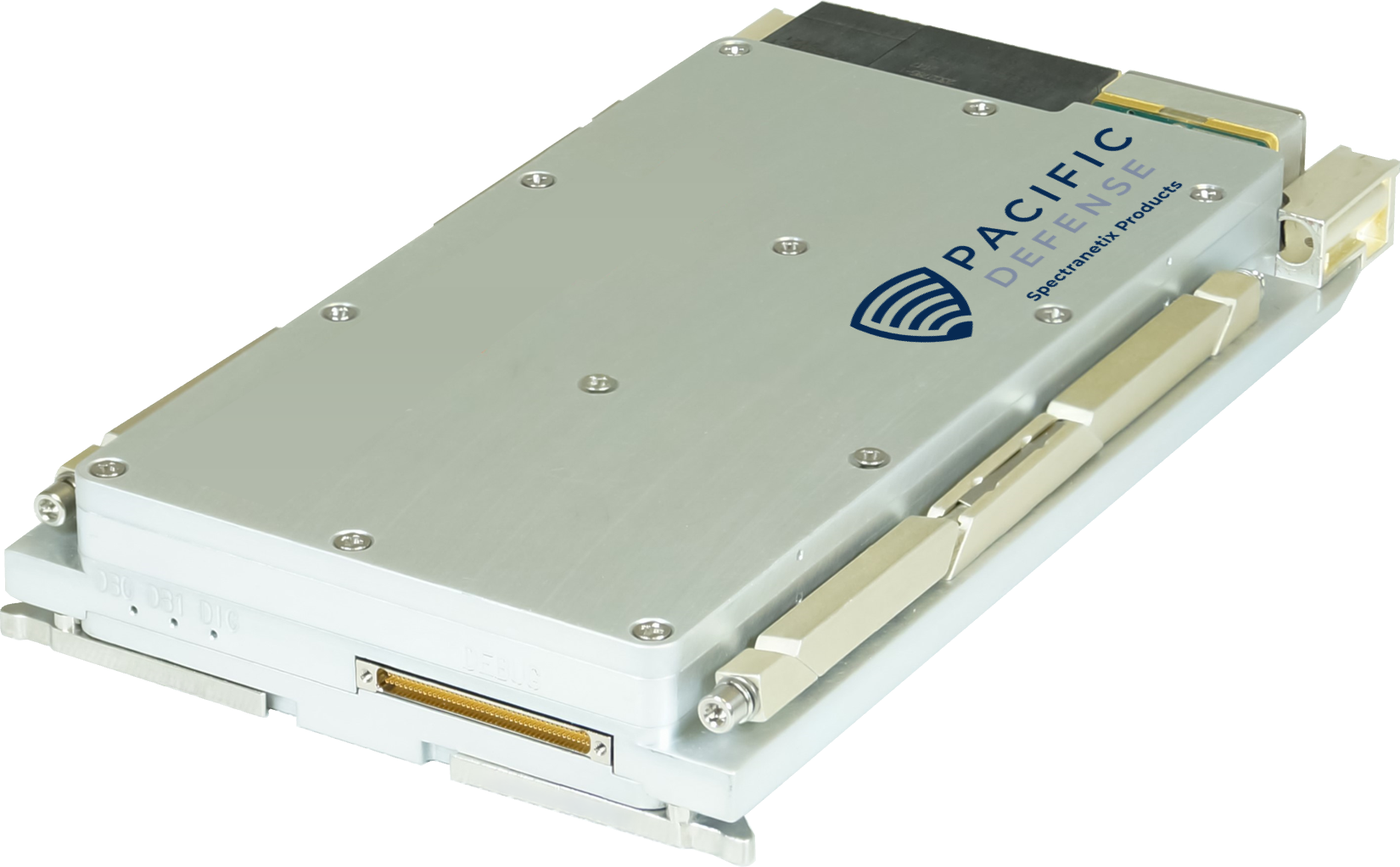

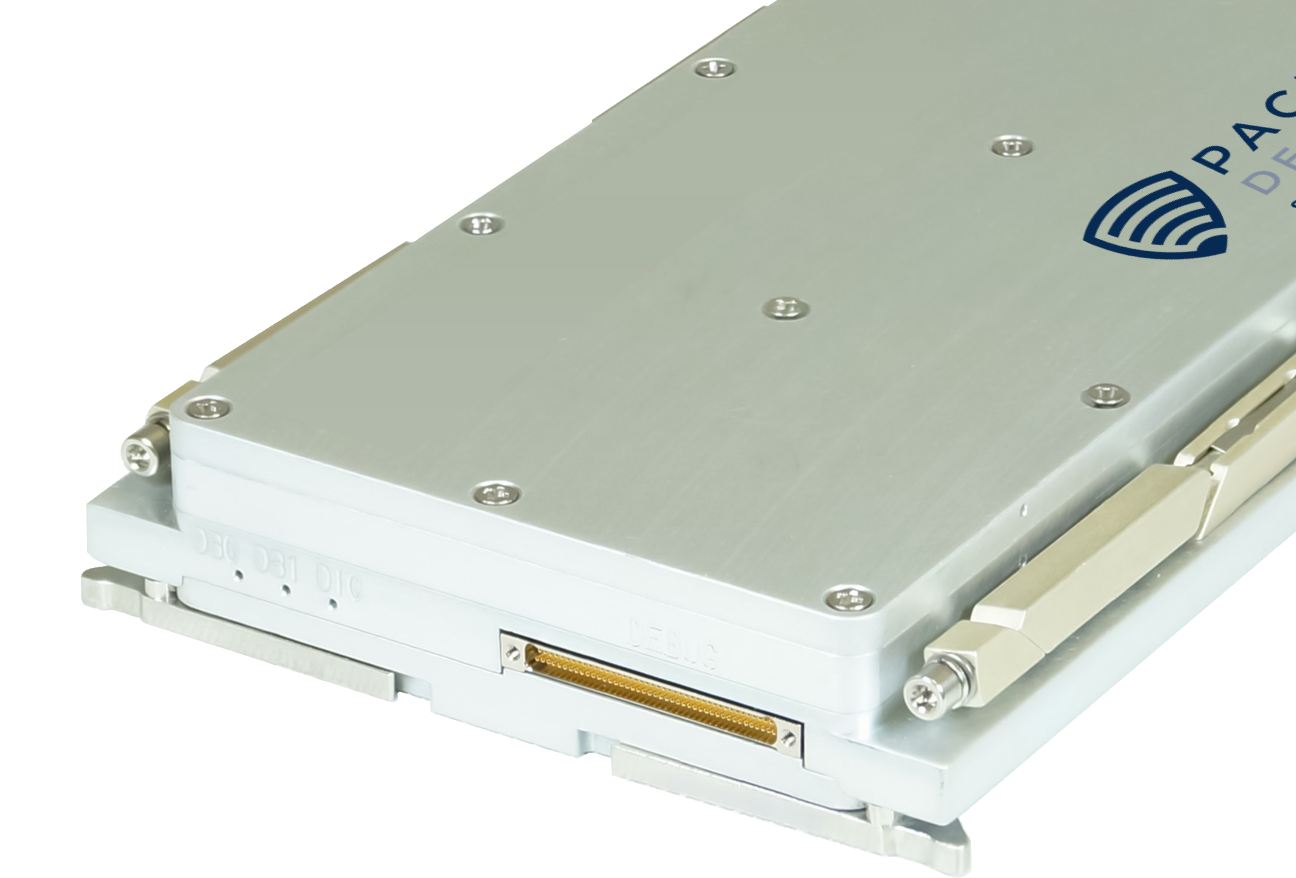

SX-432
Ultra-wideband SDR Transceiver
The SX-432 is an ultra-wideband software-defined radio transceiver that meets the high-performance requirements of Cyber, EW, SIGINT, and Comms applications. It operates up to 18 GHz with a 1000 MHz instantaneous analog bandwidth, offering data rates up to 100 Gbps. Designed in alignment with SOSA™ and CMOSS standards, this 3U OpenVPX card provides powerful real-time processing in secure, separated enclaves (Red/Black), ensuring swift security certification and operational versatility for modular open systems approach (MOSA) systems.
Built around Xilinx’s Zynq® UltraScale+™ RFSoC, the SX-432 combines heterogeneous processing with scalability and real-time control. It features advanced FPGA resources to support complex operations and is engineered for robust performance in extreme conditions. This transceiver is ideal for mission-critical defense and commercial platforms requiring high-speed data processing and secure communications, delivering the reliability and adaptability needed for a broad range of applications.
Key Features
Powered by Xilinx Zynq UltraScale+ RFSoC
Dual independent TX and RX channels
100GBASE-KR4, 10GBASE-KR, and PCIe Gen3 backplane support
Intelligent Platform Management Interface (IPMI) System Management
Supports multi-card, phase coherency for geolocation and beamforming
Programmable DDCs
Supports 100 GbE ML2B real-time bus and MORA transport layer
Comprehensive Embedded Development Kit (EDK) and Software Development Kit (SDK)
Specifications
Frequency
100-18000 MHz
Bandwidth
Instantaneous bandwidth dependent on the RF input frequency
1000 MHz for greater than 6000 MHz RF input,
500 MHz for RF input below 6000 MHz
Power
80W (typical estimate) power consumption
Max input signal power +20 dBm without damage
Output signal power +10 dBm (nominal)
Signal power adjustment range 36 dB in 1 dB steps
Memory
8 GB of total DDR4 memory
Data Converters
14 bits I/Q ADC/DAC resolution
3U OpenVPX
Form Factor
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4
Customizable to other aperture options
Slot Profile
Environmental
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
MORA
VICTORY
Block Diagram intended as a reference for basic features and connections and not an actual product layout or design. Specifications are subject to change without notice.
Complementary Product

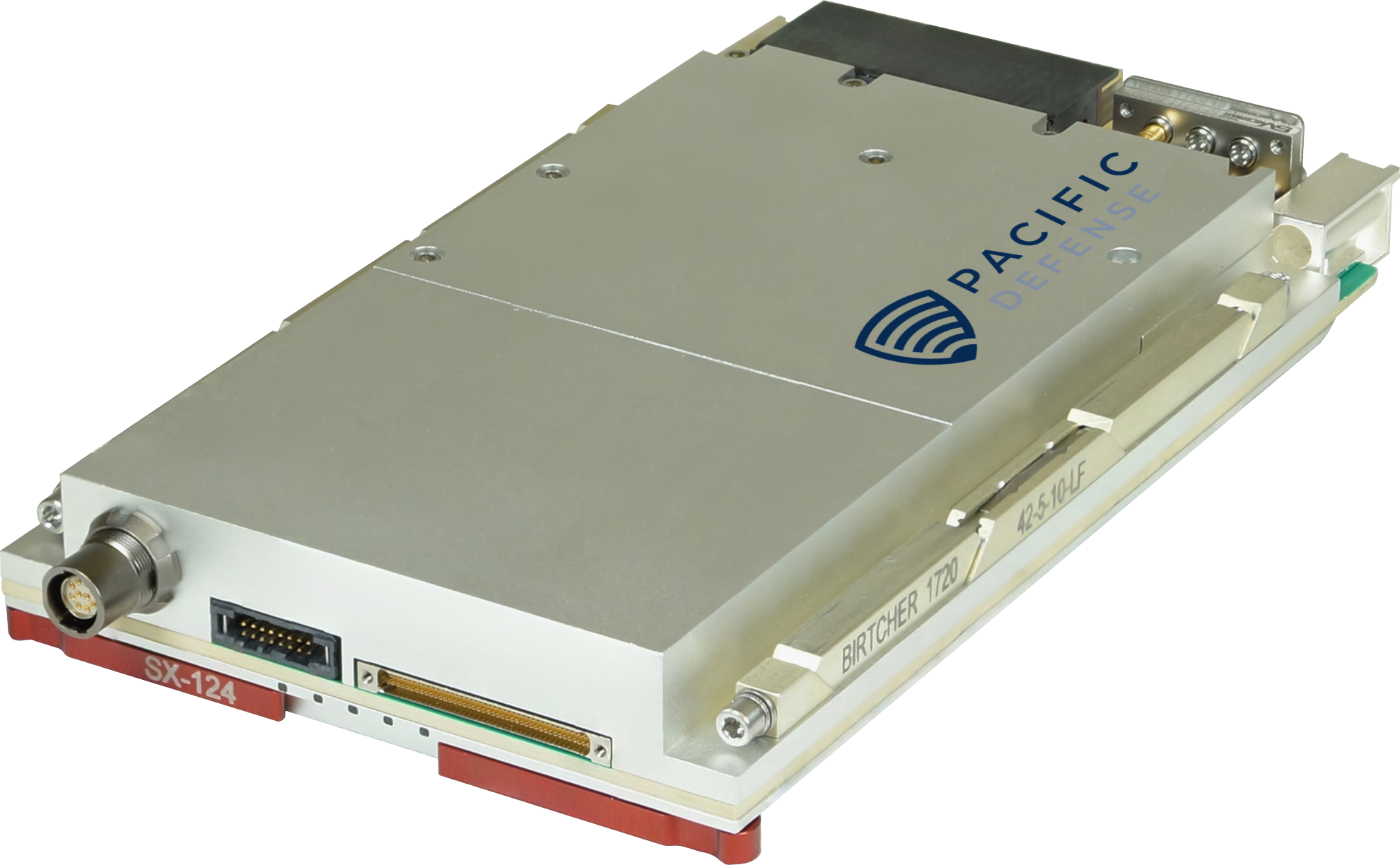

SX-124 Assured Positioning/Navigation/ Timing Card
1PPS/100MHz reference timing sources
Powerful sensor fusion engine
Support for an M-Code GPS receiver
