SX-610
TSM MANET

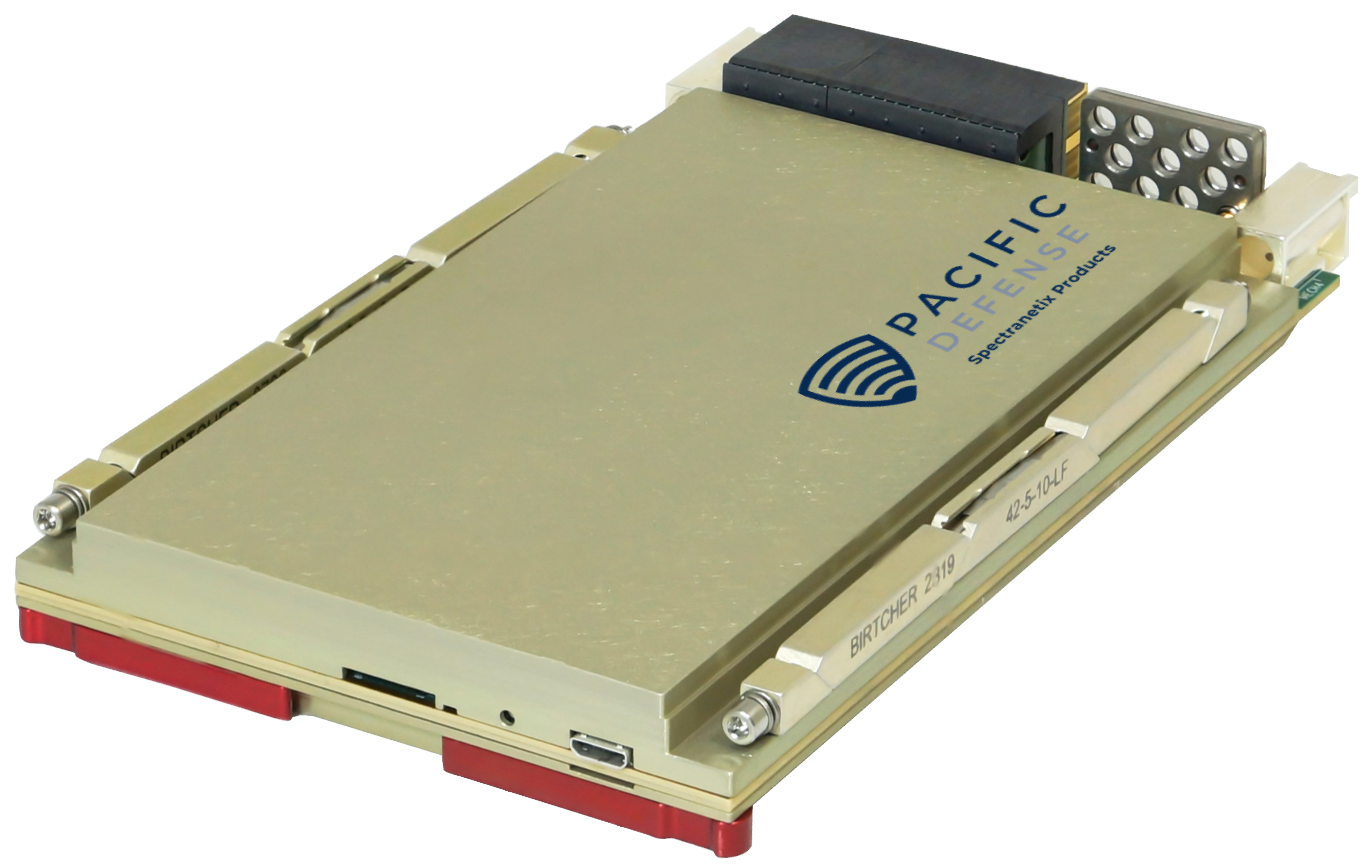

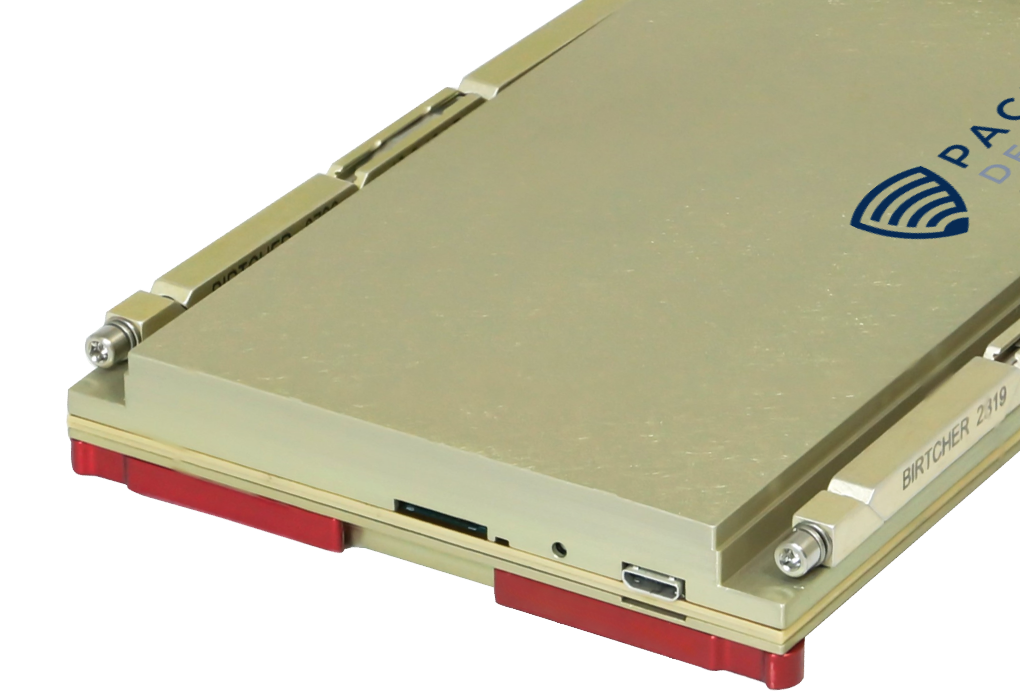

The SX-610 is a robust mobile ad-hoc network (MANET) plug-in card designed for Cyber and Comms applications, enabling seamless voice, data, and positioning communications across air, land, and sea platforms. It supports the TrellisWare TSM™ waveform, delivering the industry’s first MANET networking and communications capabilities to the CMOSS/SOSA™ ecosystem. This 3U OpenVPX plug-in card is engineered to provide reliable communication in a wide range of operational environments.
Powered by Texas Instruments’ Sitara™ microprocessor, the SX-610 ensures consistent performance and flexibility. The card is designed as a single processing enclave with flexibility to operate in different security domains enhancing interoperability and security certification for modular open systems approach (MOSA) systems. The SX-610 is ideal for defense and commercial platforms requiring robust and scalable communication solutions, offering reliable connectivity and adaptability for mission-critical operations.
Key Features
TSM™ Release 6 Communications waveform enables MANET
Supports simultaneous voice, PLI, and data messaging on a single RF channel
Built-in COMSEC with Advanced Encryption Standard (AES-256)
Fully interoperable with radios running the TSM X™ waveform
Built-in video encoding
Gigabit Ethernet backplane interface
Intelligent Platform Management Interface (IPMI) System Management
Supports VICTORY/MORA interfaces including voice over the VICTORY data bus
Integrated configuration and monitoring via web
Specifications
Frequency
Utilizes L-UHF, U-UHF, and L/S frequency bands
Bandwidth
Configurable channel bandwidths: 1.2, 4, 10, 20, 40 MHz
Topology
Point-to-point network, up to 16 Mbps in one hop
Support for up to 250 users on a single RF channel
Up to 32 simultaneous talk groups
Power
Output RF signal transmit power: 0.1W to 2W
Form Factor
3U OpenVPX
Slot Profile
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4
Customizable to other aperture options
Environmental
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
VICTORY
Block Diagram intended as a reference for basic features and connections and not an actual product layout or design. Specifications are subject to change without notice.
