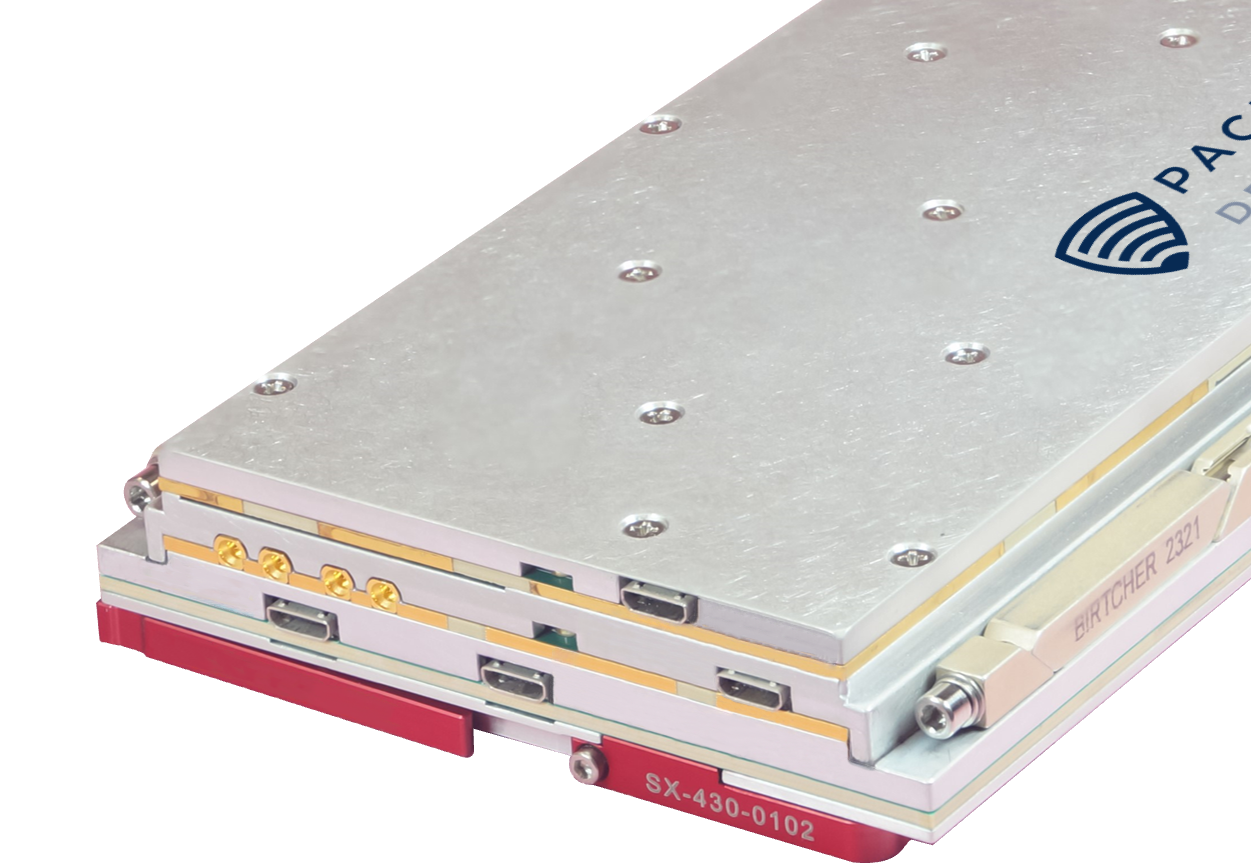

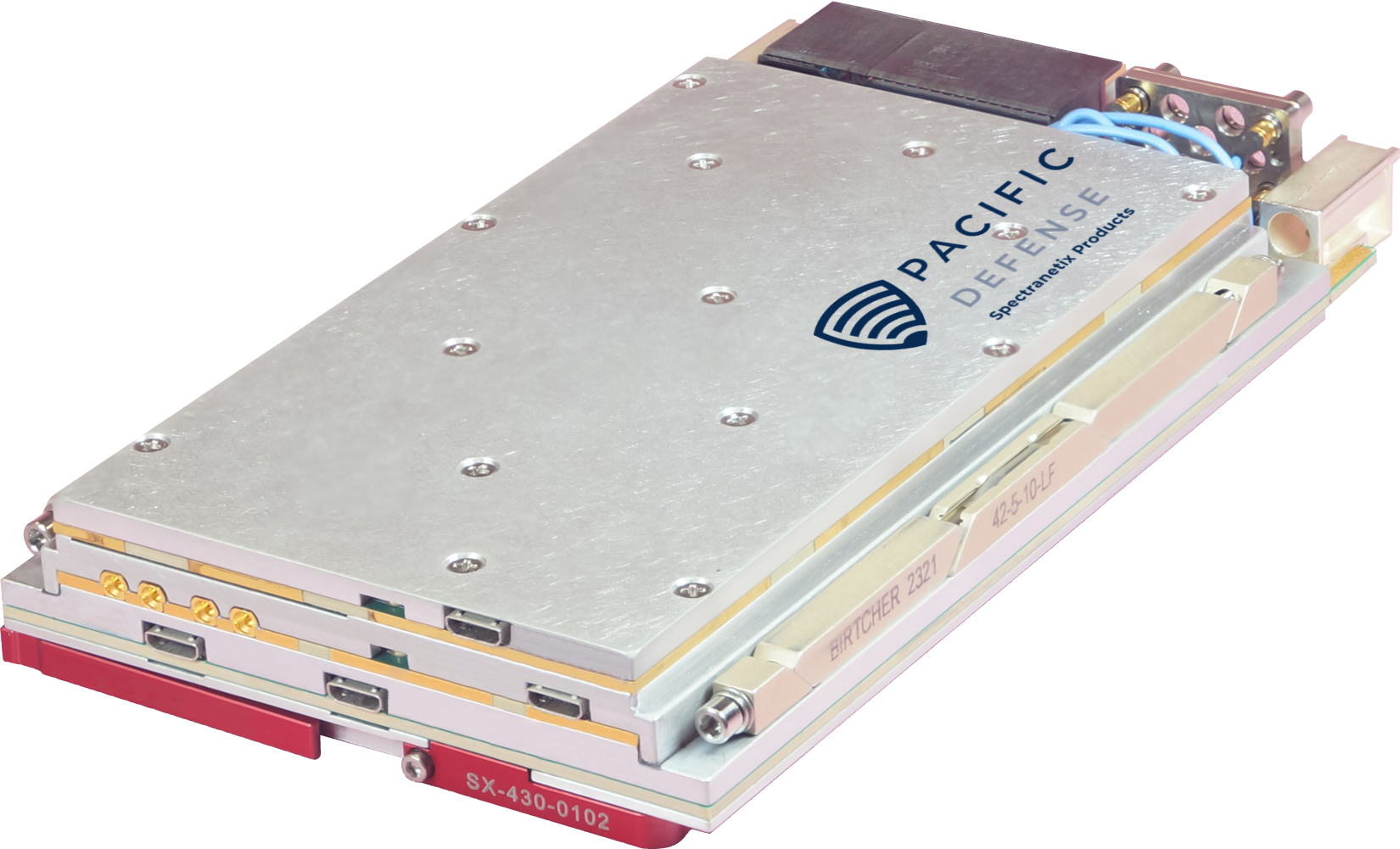

SX-430
Wideband SDR Transceiver
The SX-430 is a high-performance software-defined radio transceiver, ideal for Cyber, EW, SIGINT, and Comms applications across air, land, and sea platforms. Operating up to 18 GHz frequency with 160 MHz instantaneous analog bandwidth (narrower bandwidths achievable via digital processing), it supports data rates up to 40 Gbps. Aligned with SOSA™ and CMOSS technical standards, it offers powerful onboard FPGA resources for real-time processing in secure, separated enclaves, enhancing security certification and mission flexibility. Built on Xilinx's UltraScale+™ MPSoC, it ensures robust performance and reliability in challenging environments.
Key Features
Two physically separated secure enclaves for dual-domain security isolation
Dual independent TX and RX channels
40GBASE-KR4, 1000BASE-X, and PCIe Gen3 backplane support
Intelligent Platform Management Interface (IPMI)
Supports multi-card, phase coherency for geolocation and beamforming
Programmable DDCs
VICTORY and MORA transport layers with built-in Red/Black separation
Supports 40 GbE ML2B real-time bus
Comprehensive Embedded Development Kit (EDK) and Software Development Kit (SDK)
Specifications
Frequency
5-18000 MHz
Bandwidth
160MHz Instantaneous Bandwidth
Power
95W (typical) power consumption
Max input signal power +20 dBm without damage
Output signal power 0 dBm (nominal)
Signal power adjustment range 30 dB in 1 dB steps
Memory
Up to 12 GB of total DDR4 memory
Data Converters
16 bits I/Q ADC/DAC resolution
Form Factor
3U OpenVPX
Slot Profile
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4
Customizable to other aperture options
Environmental
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
MORA
VICTORY
Block Diagram intended as a reference for basic features and connections and not an actual product layout or design. Specifications are subject to change without notice.
