SX-124
Positioning, Navigation, Timing

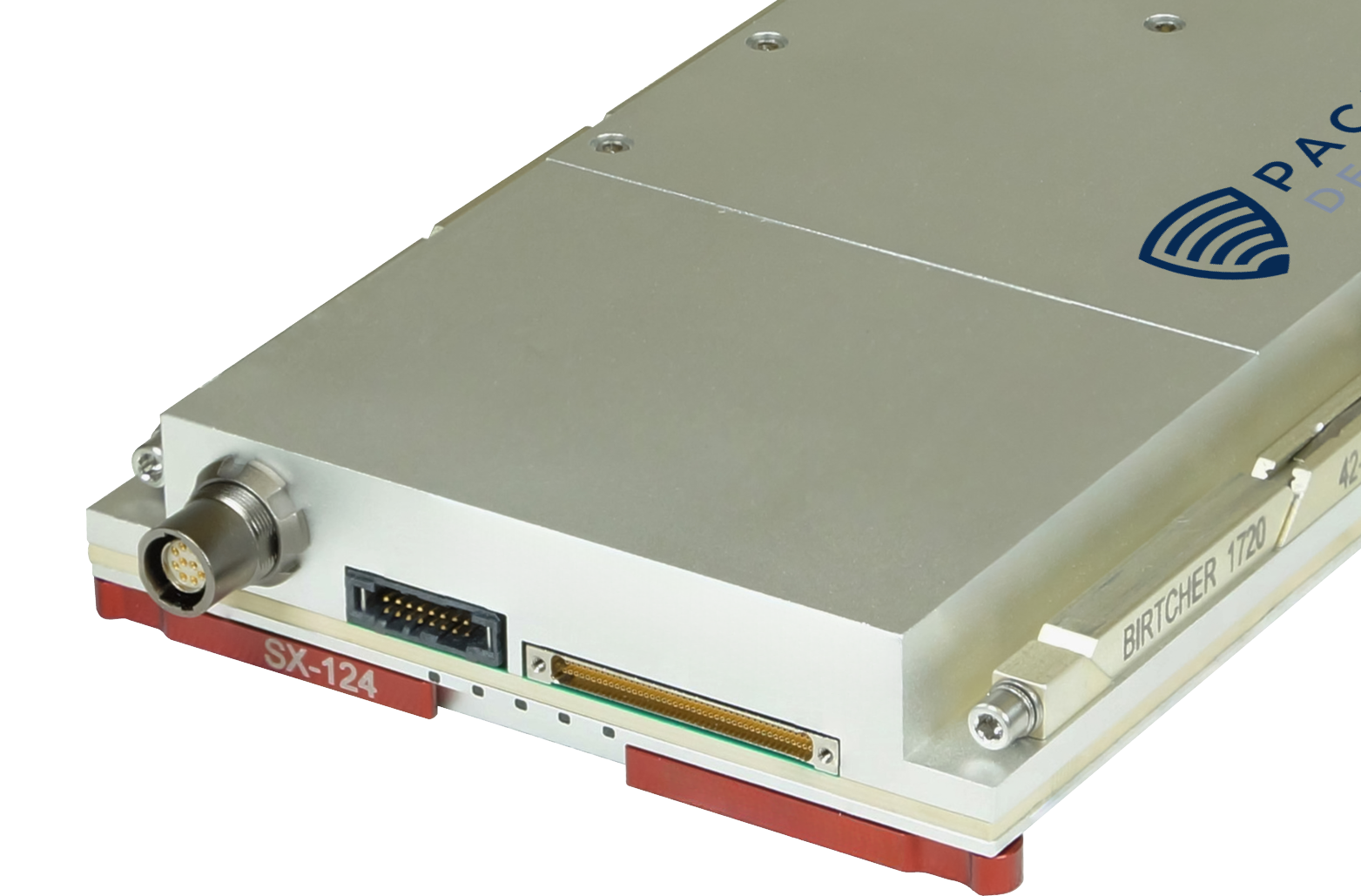

The SX-124 provides assured positioning, navigation, and timing (A-PNT) capabilities essential for Cyber, EW, SIGINT, and Comms applications in GPS-denied environments. It features onboard GNSS receivers and can utilize external resources for timing and position data, distributing precise timing outputs and synchronizing timestamps. This 3U OpenVPX plug-in card aligns with the SOSA™ technical standards, ensuring seamless integration and reliability for modular open systems approach (MOSA) systems.
Built on Xilinx's UltraScale+™ MPSoC, the SX-124 offers robust processing and real-time control. It supports multiple sensors using the pntOS open sensor fusion software framework, providing accurate timing and positioning in challenging conditions. The SX-124 is ideal for defense and commercial platforms needing dependable navigation and timing information, delivering high precision and performance under the toughest operational demands.
Key Features
100MHz/1PPS reference clock and timing source outputs to backplane
Sensor fusion powered by Xilinx Zynq UltraScale+ MPSoC and pntOS
Internal 6-Axis IMU for enhanced position accuracy
Time/Frequency Holdover from internal Rb MAC or CSAC
Optional M-Code GPS/GB-GRAM-M and ALTNAV onboard receivers
Compatible with either fixed or controlled reception pattern antennas (FRPA/CRPA)
Supports additional external sensors and timing references
IEEE 1588 PTP, NTP and location data provided via Gigabit Ethernet backplane
Intelligent Platform Management Interface (IPMI) System Management
VBAT supported time of the day
Standard VICTORY shared PNT services
Specifications
Clocking/Timing
Phase-coherent outputs to within ±0.1 ns
11 slot 100 MHz clock reference
11 slot 1 PPS timing reference
Time Stamping
High-precision GPS synchronized time stamps to within 10 ns resolution
Holdover
Timing reference holdover accuracy better than 1 µsec for 24 hours
Phase Noise
Low phase noise
Form Factor
3U OpenVPX
Slot Profile
SLT3x-TIM-2S1U22S1U2U1H-14.9.2-1
Customizable to other aperture options
Environmental
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
VICTORY
Block Diagram intended as a reference for basic features and connections and not an actual product layout or design. Specifications are subject to change without notice.
Complementary Product
SX-153 100G Ethernet Switch
100 Gbps data rates
Layer 2/3+ Ethernet switch solution
Dual security enclaves
