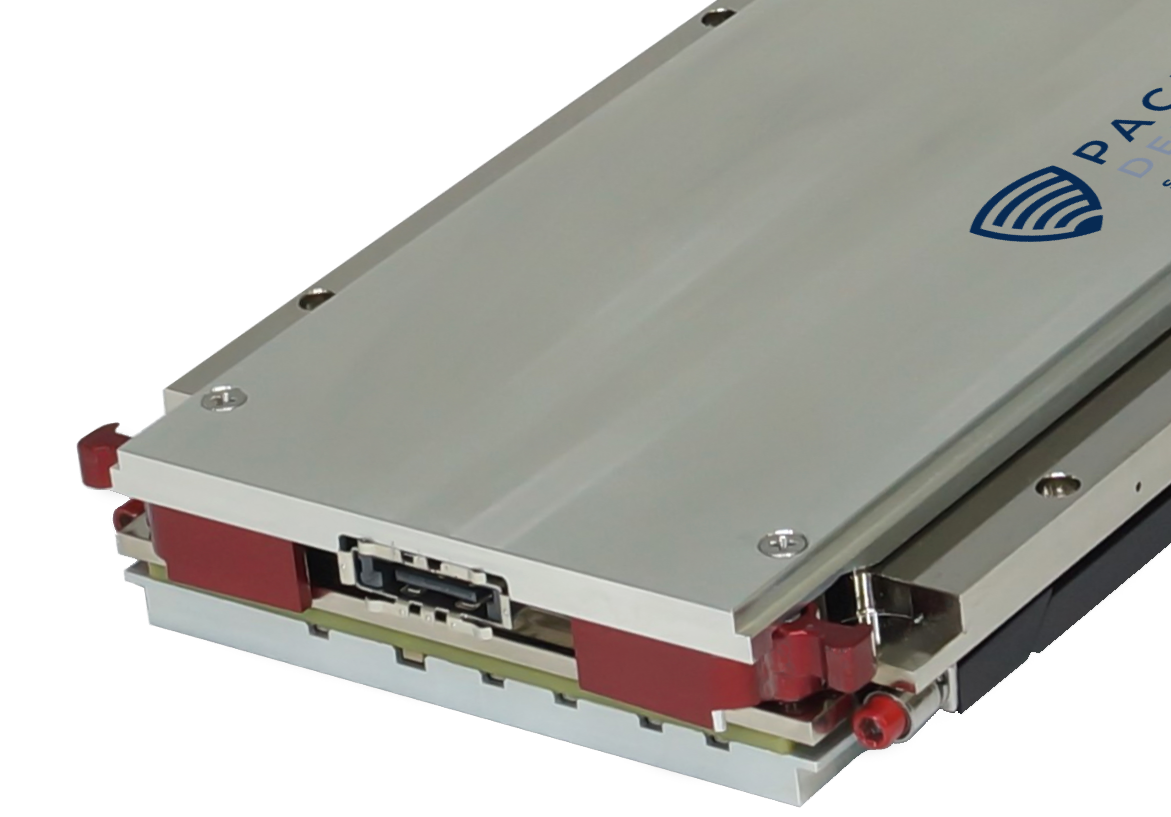

SX-330
Single Board Computer
The SX-330 is a rugged single board computer designed for high-performance embedded computing (HPEC) in Cyber, EW, SIGINT, and Comms applications across air, land, and sea platforms. Aligned with SOSA™ and CMOSS standards, this 3U OpenVPX plug-in card features an Intel® Xeon® D processor for complex computations and high-speed data processing. Its robust design supports Government and third-party algorithms and cyber payloads, making it ideal for mission-critical aerospace, defense and commercial applications.
Equipped with a 40Gbps Ethernet Data Plane, ample system memory, and expandable storage and computational capabilities via an XMC mezzanine site, the SX-330 ensures high-performance processing and future scalability. It integrates seamlessly into modular open systems approach (MOSA) systems with Linux BSP and Modular Open Radio Frequency Architecture (MORA) support. Built to ANSI VITA 48.2 and VITA 47 standards for rugged reliability, the SX-330 is engineered for performance in extreme conditions.
Key Features
12-core Intel® Xeon® D-1559 processor, 1.5GHz (2.1 GHz Turbo)
Compute Intensive processing
40GBASE-KR4, 10GBASE-KR, 1000BASE-BX, and PCIe Gen3 x8 backplane support
Intelligent Platform Management Interface (IPMI) System Management
X8 PCI Express® Gen3 XMC slot for future processor and storage expansion
PBIT and MORA client library
Specifications
Power
70W (max power consumption, 100% all cores)
60W (max power consumption, 80% all cores)
32W (max power consumption, Linux idle/powersave mode)
Memory
32 GB of onboard DDR4 memory
Data Converters
1TB GB M.2 solid state storage
Form Factor
3U OpenVPX
Slot Profile
SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-0
Environmental
VITA 48.2 conduction cooled
Standards
MOSA
U.S. Army CMOSS
The Open Group SOSA™
OpenVPX™
MORA
Block Diagram intended as a reference for basic features and connections and not an actual product layout or design. Specifications are subject to change without notice.
Complementary Product
SX-430 Wideband SDR Transceiver
Up to 18 GHz tunable RF front-end
Dual security enclaves
Bundled EDK and SDK
