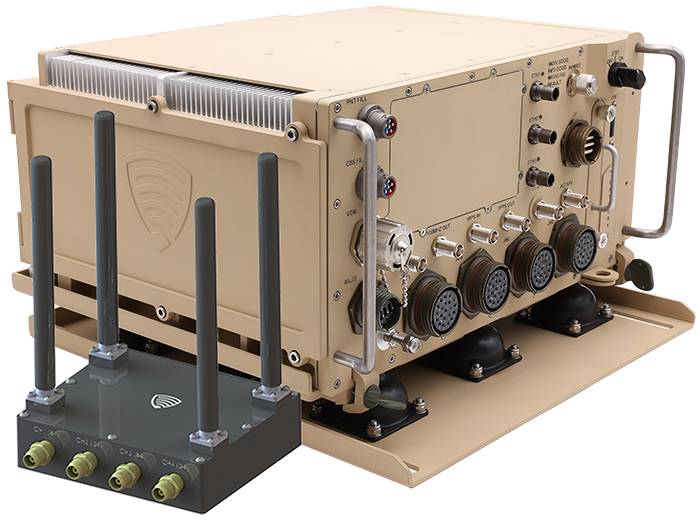

MCS2090VP
Multi-Waveform C2 Mission System

The MCS2090VP is a Modular Open Systems Approach (MOSA) solution that maximizes access to multi-vendor technology and provides more flexibility in upgrading and fielding new technologies. A Commercial Off-The-Shelf (COTS) multi-waveform command and control (C2) mission system aligned with the CMOSS, SOSA™, and OpenVPX™ technical standards represents a significant step forward in the Army’s efforts to modernize its C2, communication and electronic warfare capabilities.

As a part of Pacific Defense’s Networked and Encrypted Resilient Versatile Engine (NERVE) family of systems, the MCS2090VP provides scalable compute and communication to support multi-echelon, radio cross-banding, and simultaneous voice and data communications. Such support, as well as critical interoperability and redundancy, is achieved using communication waveforms hosted on CMOSS based tactical radios and single board computers. Built around Silvus’ MN-MIMO and TrellisWare TSM™ field-tested waveform technologies, the MCS2090VP enables advanced, resilient communication with an SBU-E (Sensitive but Unclassified - Encrypted) network at the tactical edge to ensure commanders have a common operating picture even in disrupted environments.


Key Features

Communication Waveforms

Silvus MN-MIMO

TrellisWare TSM™ Release 6

Legacy tactical waveforms

  • SINCGARS SC-PT Voice

  • AM/FM Unclassified Voice


Compute/Processing

Intel® Xeon® W series (Tiger Lake) processor for mission command and system management

Intel® Xeon® D series (Ice Lake) processor for NetOps and other compute intensive applications


Networking

1/10/40/100G Ethernet provides route, switch, and compute

Supports L2/L3 and some L4 network protocols


Positioning/Navigation (PNT)

Assured PNT services with multiple sensors and sensor fusion

1PPS/100MHz reference timing source

Enhanced M-Code GPS/IMU position accuracy

Internal CSAC/Rb MAC for time/frequency holdover


Connectivity

Multiple RF radio antenna interfaces

MORA Low Latency Bus (ML2B)

VICTORY Data Bus (VDB)

Timing, GNSS and ALTNAV antenna interfaces

PNT Fill

Crypto Sub-system (CSS) Fill

General user interfaces (e.g. Ethernet, USB, SATA, Display Port, etc.)

NVMRO

Customizable to support legacy interfaces (optional)


Chassis Management

Integrated Chassis Manager module


Storage

Provision for a removable storage device


Cooling Fan

Low noise cooling fan solution


Software Applications/Tools

CharybdisOS™ SOSA-aligned operating environment

MMC-S for JBC-P or TAK (LTAK) Server

VIASAT NetAgility Software-Defined Router

REDCOM tactical secure voice conferencing

CodeMettle for radio management

VICTORY services and Instant Connect Enterprise™ (ICE) platform for Radio over IP (RoIP)

Kraken video streaming service

Palo Alto firewall for advanced threat prevention and securing sensitive data

Electromagnetic Spectrum (EMS) monitoring (optional)


Mounting

Comes with a mounting tray for harsh environments


Accessories

Breakout cables provided with each chassis
MN-MIMO antenna


Specifications

Dimension (approximate)

16”(L) x 16”(W) x 9”(H)


Weight

Chassis assembly: 48 lbs

Mounting tray: 21 lbs


Power

28V DC chassis input voltage

12V DC only power distribution to plug-in cards

600W (max) power consumption


PIC Form Factor

3U OpenVPX


Slot Profile

 SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-4

SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16

SLT3-SWH-6F1U7U-14.4.14

SLT3-SWH-5F4UG7U-14.4.14

SLT3x-TIM-2S1U22S1U2U1H-14.9.2-1

VITA 62 SOSA-aligned

Customizable to other aperture options


Environmental

Hybrid cooling ruggedized to meet MIL-STD-810G

Highly efficient thermal design for conduction cooled PICs

VITA 48.2 conduction cooled PICs


Standards

MOSA

U.S. Army CMOSS

The Open Group SOSA™

OpenVPX™

MORA

VICTORY


Aligned to the SAVE (Standardized A-Kit / Vehicle Envelope) technical standard

SAVE


US Military Standard

MIL-STD-810G

MIL-STD-461C
